If you receive this message it means we did something wrong while flashing the ESPHome firmware.

But this can easily be fixed by flashing the firmware again.

You can find the firmware for your device here: shop.svenar.nl/downloads

Steps to flash the firmware:

1. Download the firmware for your device
2. Open the web-page of the device using the direct IP address or the .local address
3. Under OTA Select the firmware file you just downloaded and press [Update]
4. Wait a moment and the device will reboot with the new firmware.

If you need help with flashing the firmware, please create a ticket below and I'll help you out!

If you don't see the Access Point after connecting the controller to power, please check the following:

1. Check if the (Red-)LED on the controller is on (Visible by looking next to the connector if you have a case around it).
2. Make sure that the device receives enough power to opperate (Power requirements is listed inside of the manual).
3. Make sure your phone, laptop or any other device with WiFi you use for the setup can communicate with a 2.4GHz network.
4. Make sure you're standing withing a few meters of the controller.
5. Try to power cycle the controller by disconnecting and reconnecting the power.
6. Try pressing the reset button on the controller.

Because the controller uses an ESP32, it only supports 2.4GHz WiFI networks.

If you need help with this, please create a ticket below and I'll help you out!

Steps to flash the firmware:

1. Download the firmware for your device
2. Open the web-page of the device using the direct IP address or the .local address
3. Under OTA Select the firmware file you just downloaded and press [Update]
4. Wait a moment and the device will reboot with the new firmware.

You can find the firmware for your device here: shop.svenar.nl/downloads

If you need help with flashing the firmware, please create a ticket below and I'll help you out!

You will receive a shipping confirmation email with the tracking code when your order has been shipped.

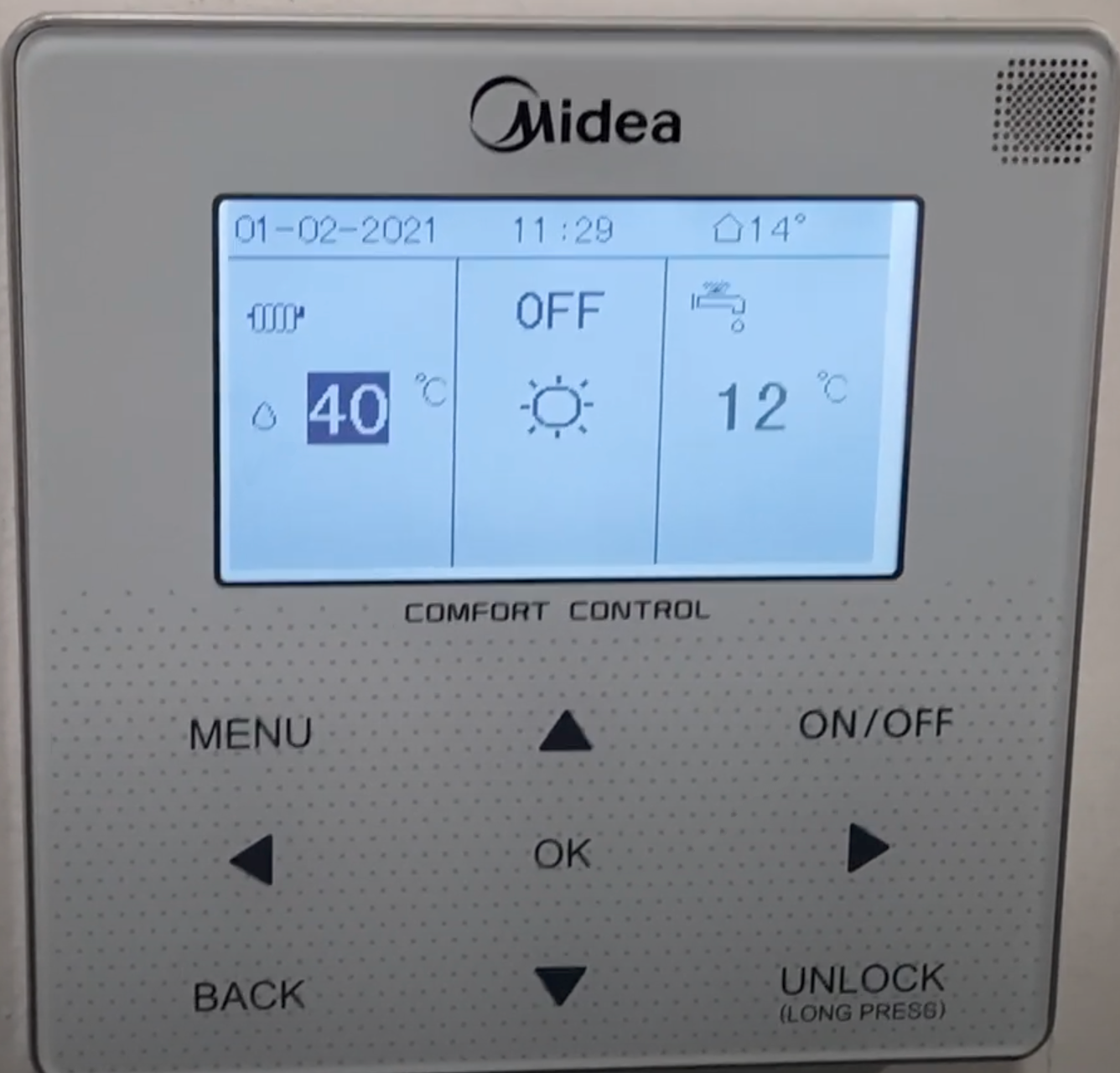

The heatpump modbus controller is connected to the heatpump's display.

While the indoor unit also has Modbus pins (H1, H2), those are not compatible with the modbus controller.

While many Midea (and clones} heatpumps use the same modbus registers, there are some that might differ.

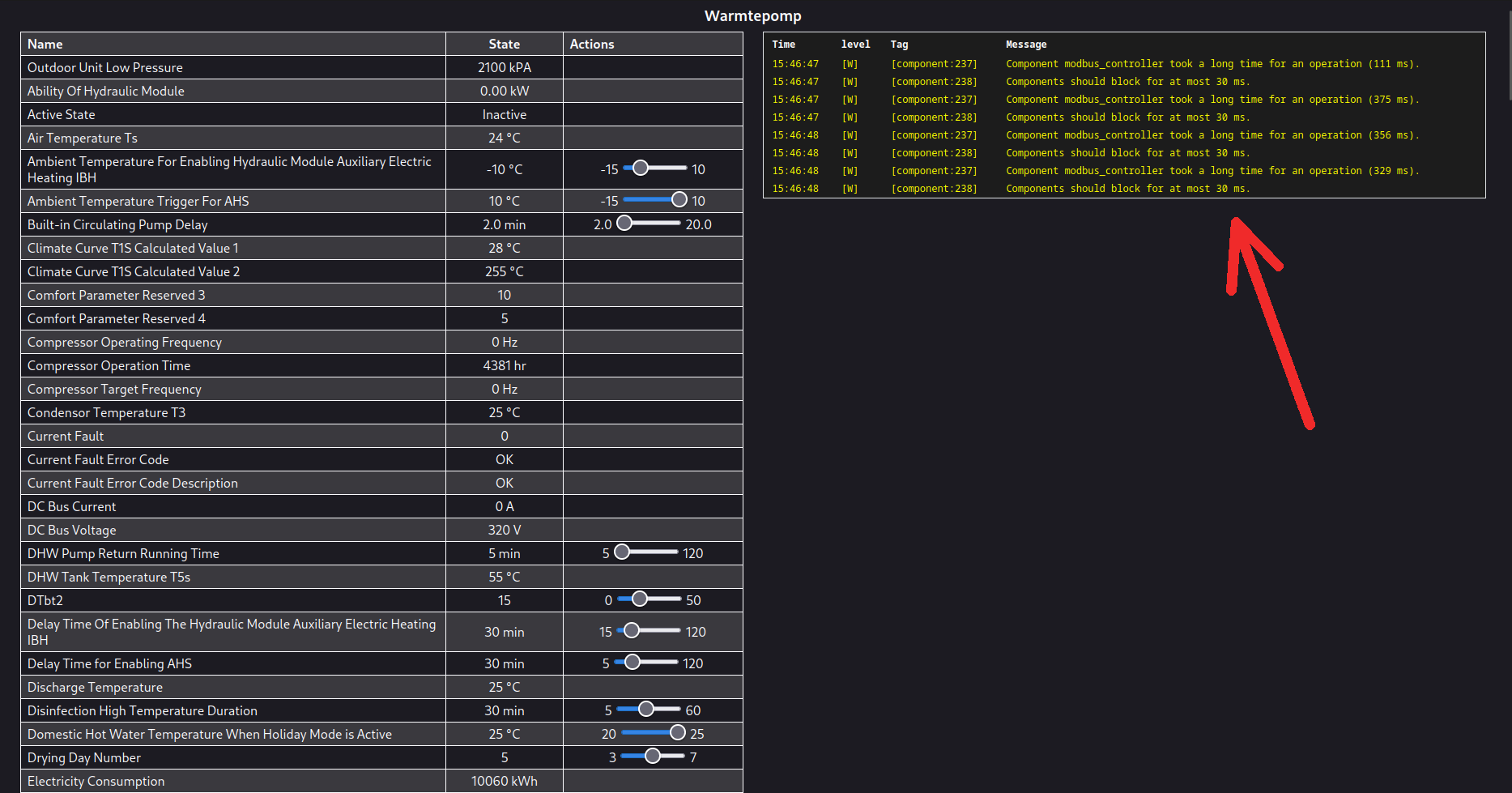

If you have a heatpump modbus controller and it doesn't receive any data, please check the following:

1. Check if the modbus cable is correctly wired to the heatpump.

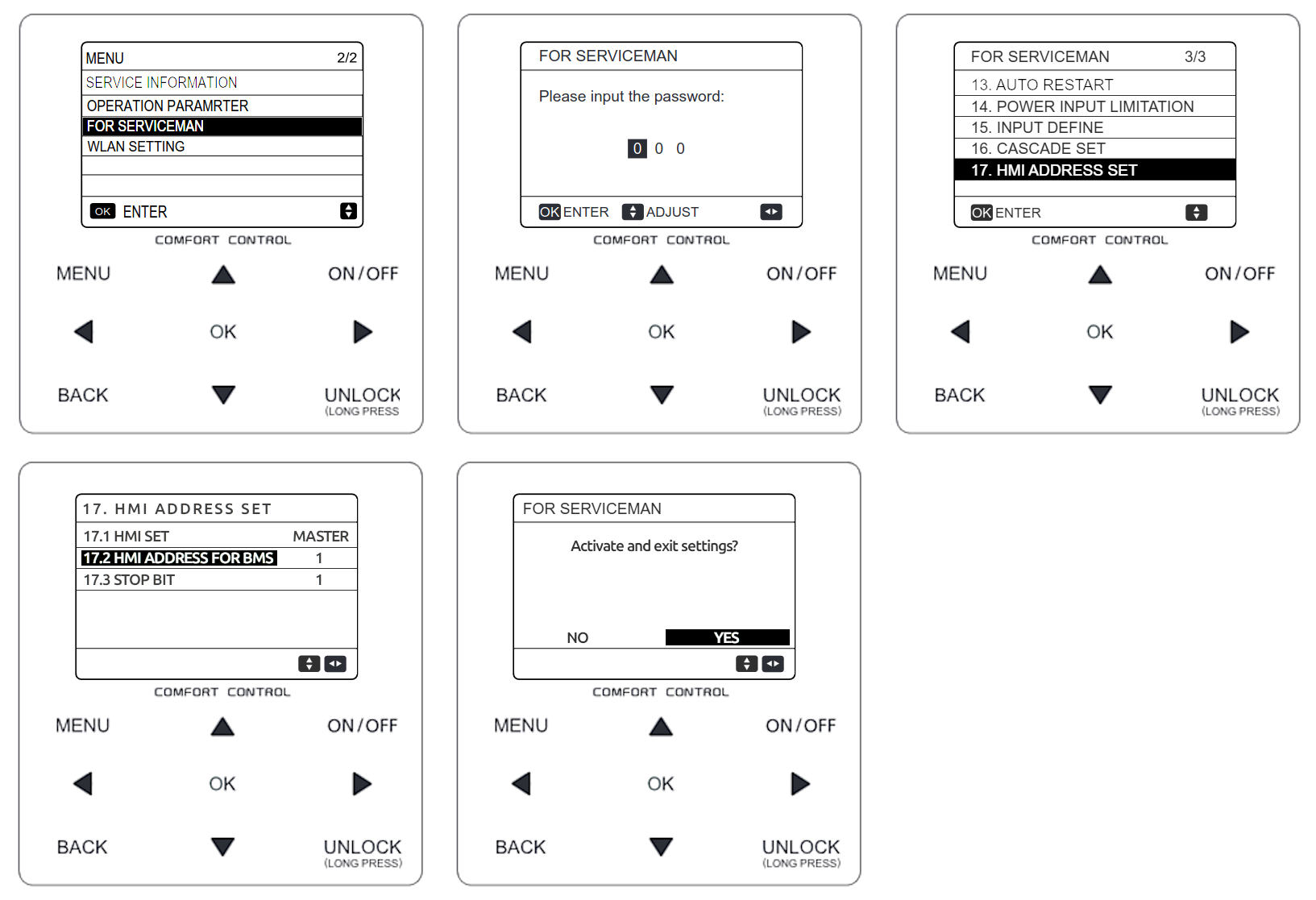

2. Check if the correct modbus address is selected:
   Default address in the ESPHome firmware is 0x1.
     └ modbus_controller:
     └     address: 0x1

3. Check if the correct baudrate is selected:
   Default baudrate in the ESPHome firmware is 9600.
     └ uart:
     └     baud_rate: 9600
4. Switch the 120ohm switch on the modbus controller to the other position (OFF->ON or ON->OFF}.

5. Look up the modbus registers for your heatpump controller and check if it is the same.

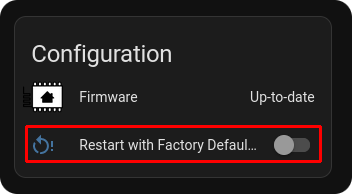

When a device is connected in HomeAssistant, you can factory reset the device toggeling the factory reset switch.

If this switch is not available, you should update the device to its latest (firmware).

At checkout you can select your preferred payment method.

  └ PayPal: Pay directly.

  └ Bank Transfer: You will receive an email with the payment instructions.
        This is currently a manual process, so it can take a bit of time before you receive the email.

Orders are shipped after the payment has been received.

If you have a question about your order, please create a ticket below and I'll help you out!
